Tips and Mods

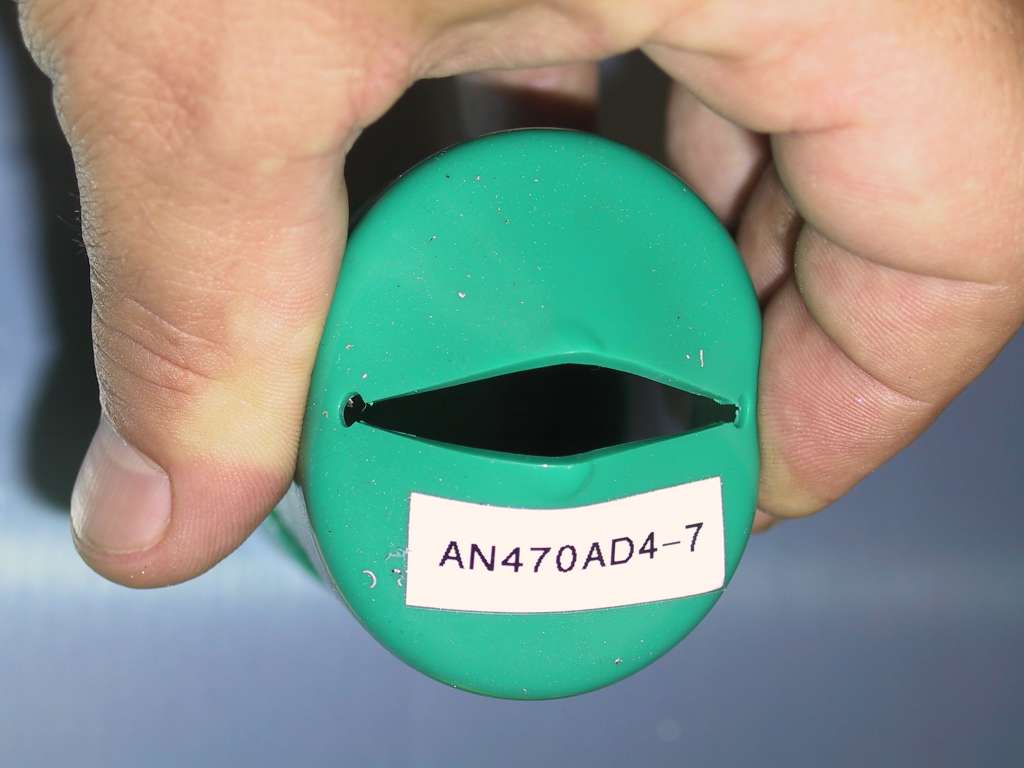

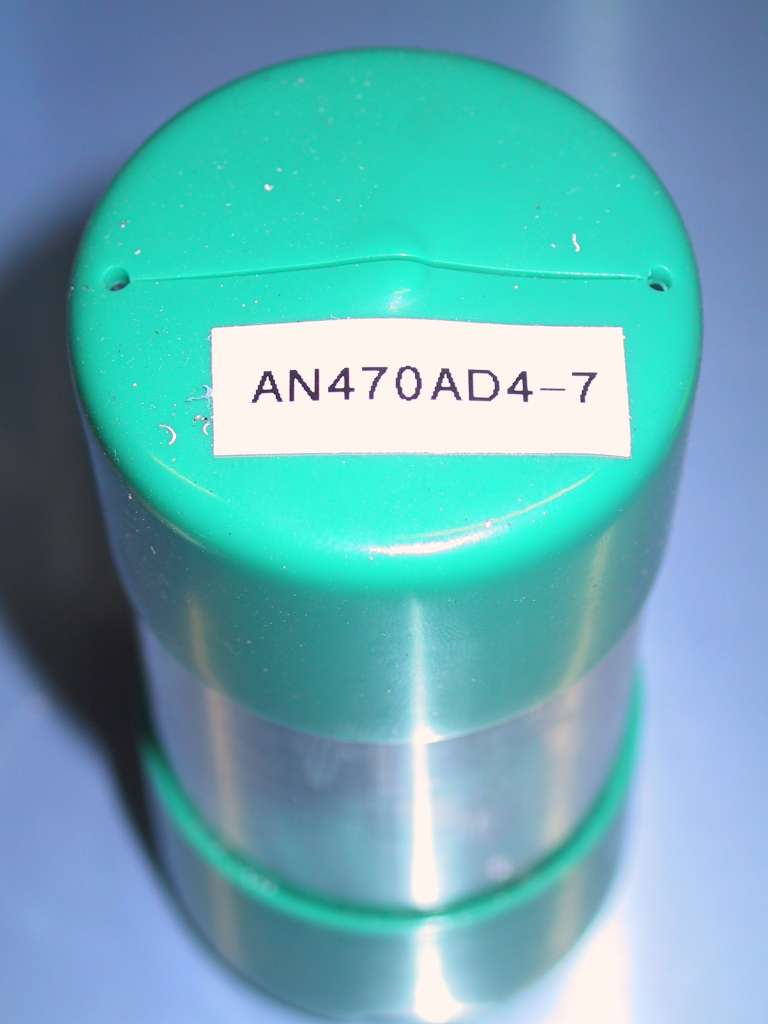

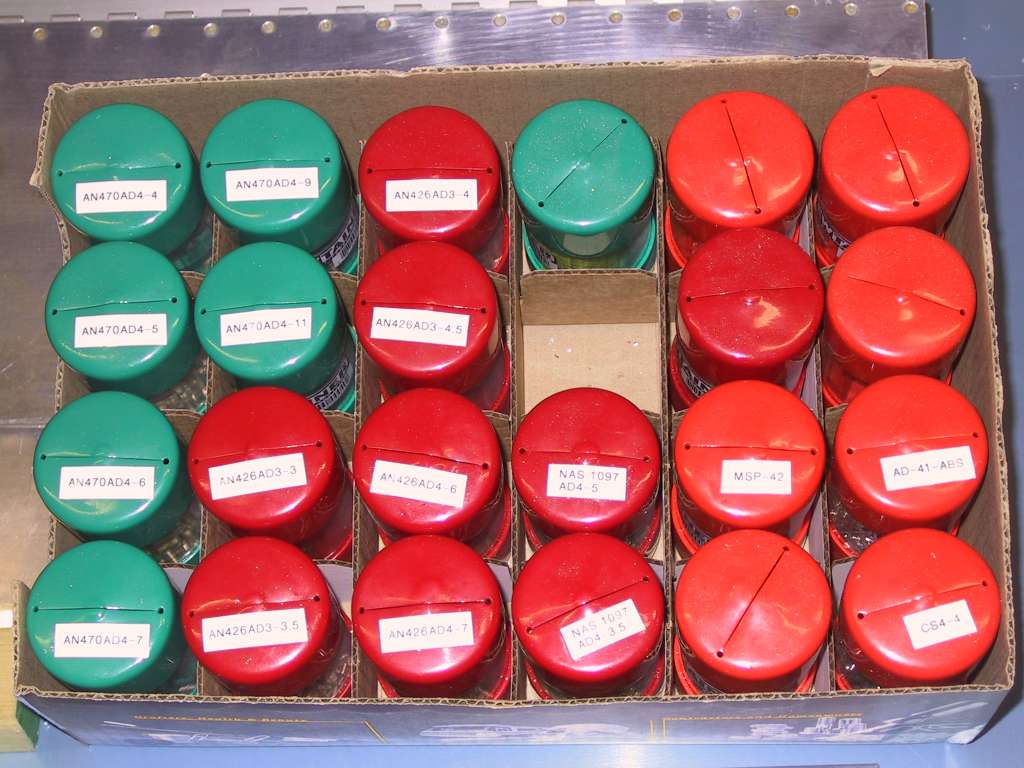

Tip #1 Storing your rivets and small parts.  I use something called a ViewTainer sold at HomeDepot and Lowes.  It has a flexible top which opens when you squeeze it and dispensing the product.  I put a label on the top indicating what's inside.  It's unbreakable and I find it highly useful.  Buy it by the flat or two.

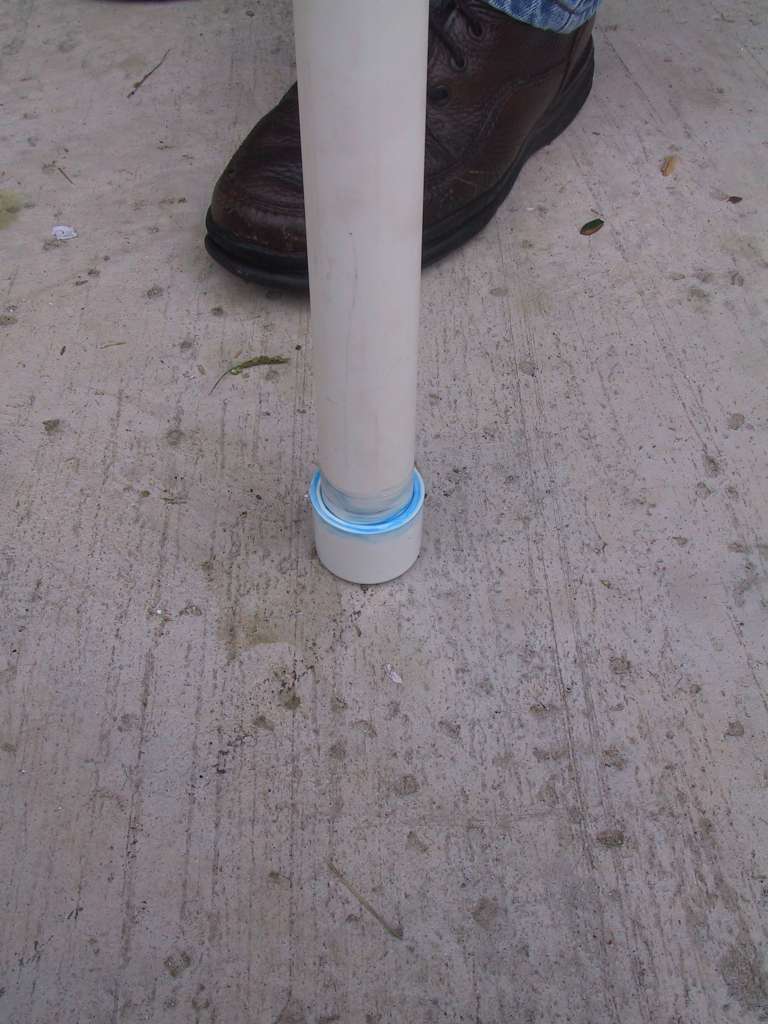

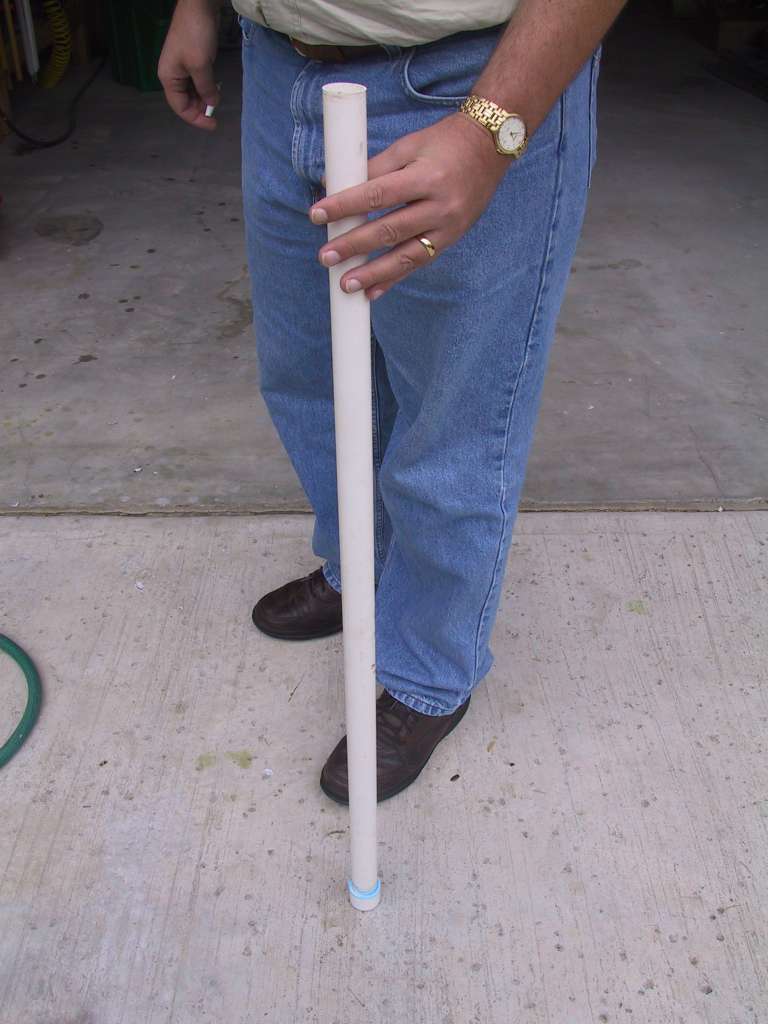

Tip #2 This saved me a bunch of time trying to get those long stiffeners alodined.  Get a section of pvc tubing long enough to hold your part.  Cement a cap on one end.  Now fill with alodine.  Be sure to leave enough volume out to accommodate the part being dipped.  Bend a six inch length of coat hanger at both ends.  Hang the part from one end, drop into the pvc and leave the other bent end hanging on the top of the tube.  When you're done it's easy to reclaim the alodine by pouring back into the bottle.

Mod #3 Battery Box Modifications.
